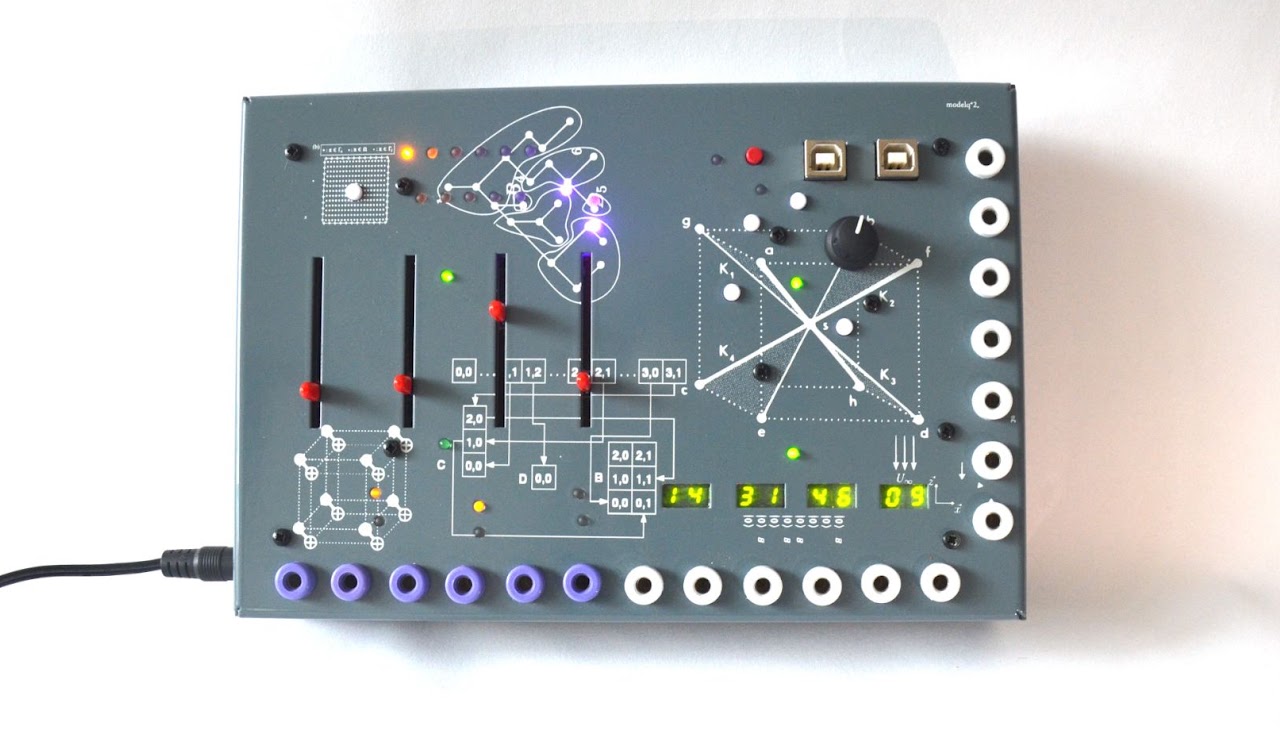

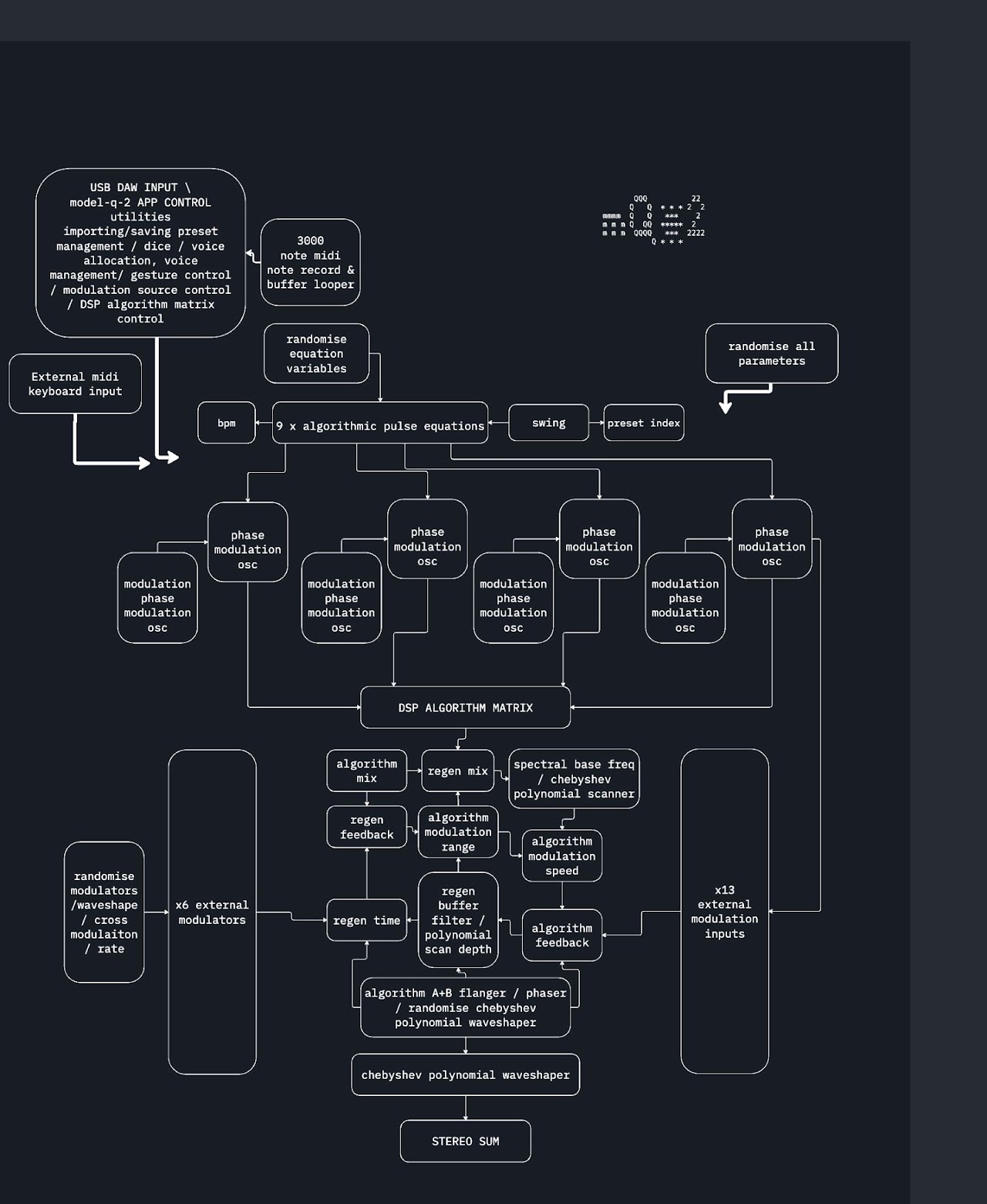

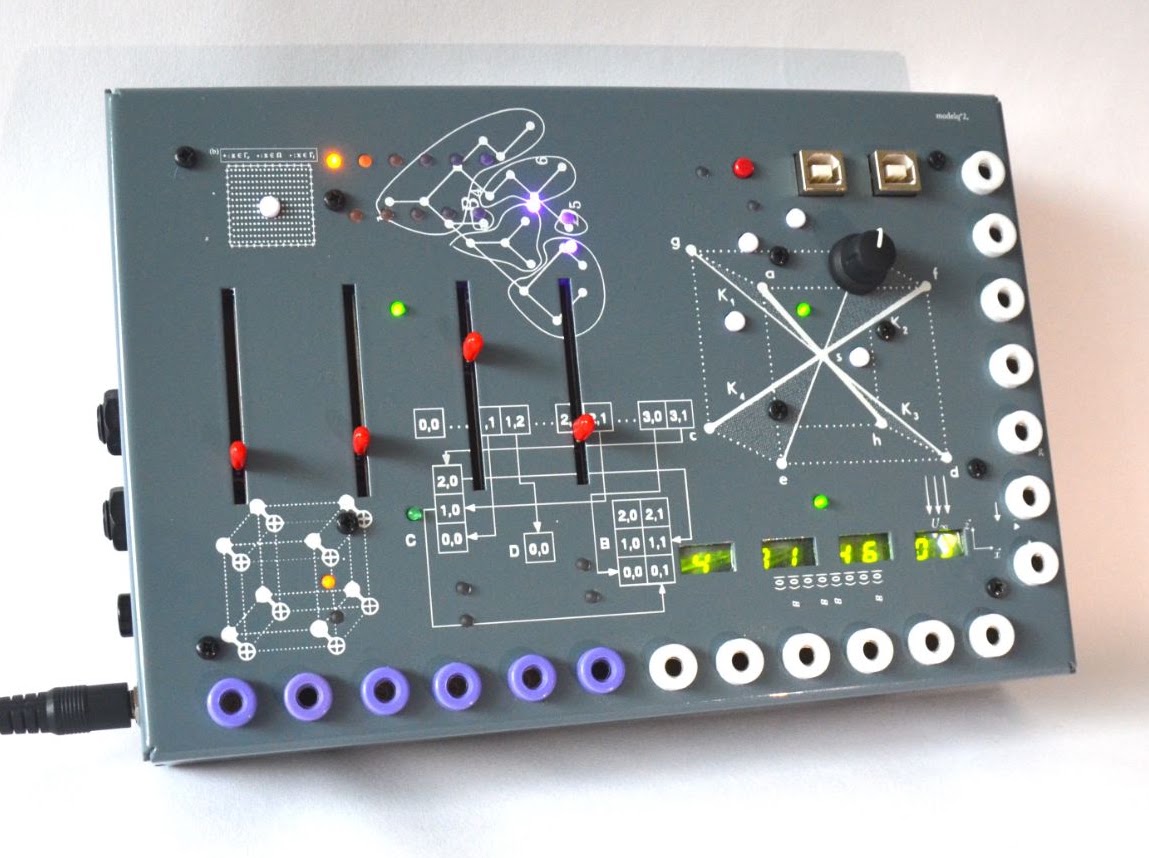

Model-Q-2 is a small complex system built on 10 algorithmic equations capable of infinite variable polyrhythmic pulses, 8 phase modulation oscillators, a DSP algorithmic matrix including app and gesture control, a chebyshev polynomial waveshaper of the 2nd kind and 6 external complex modulation sources.
Embedded Files

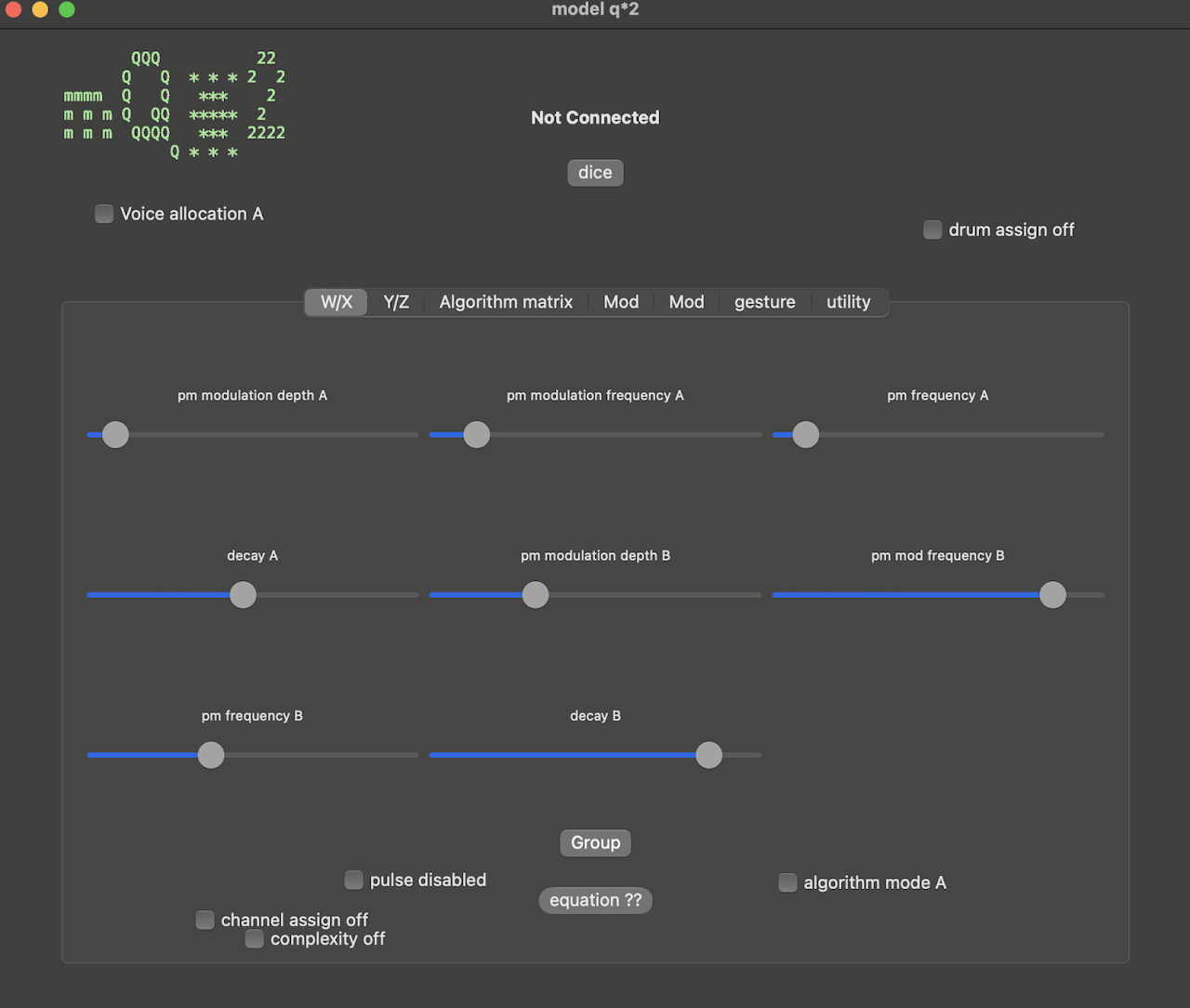

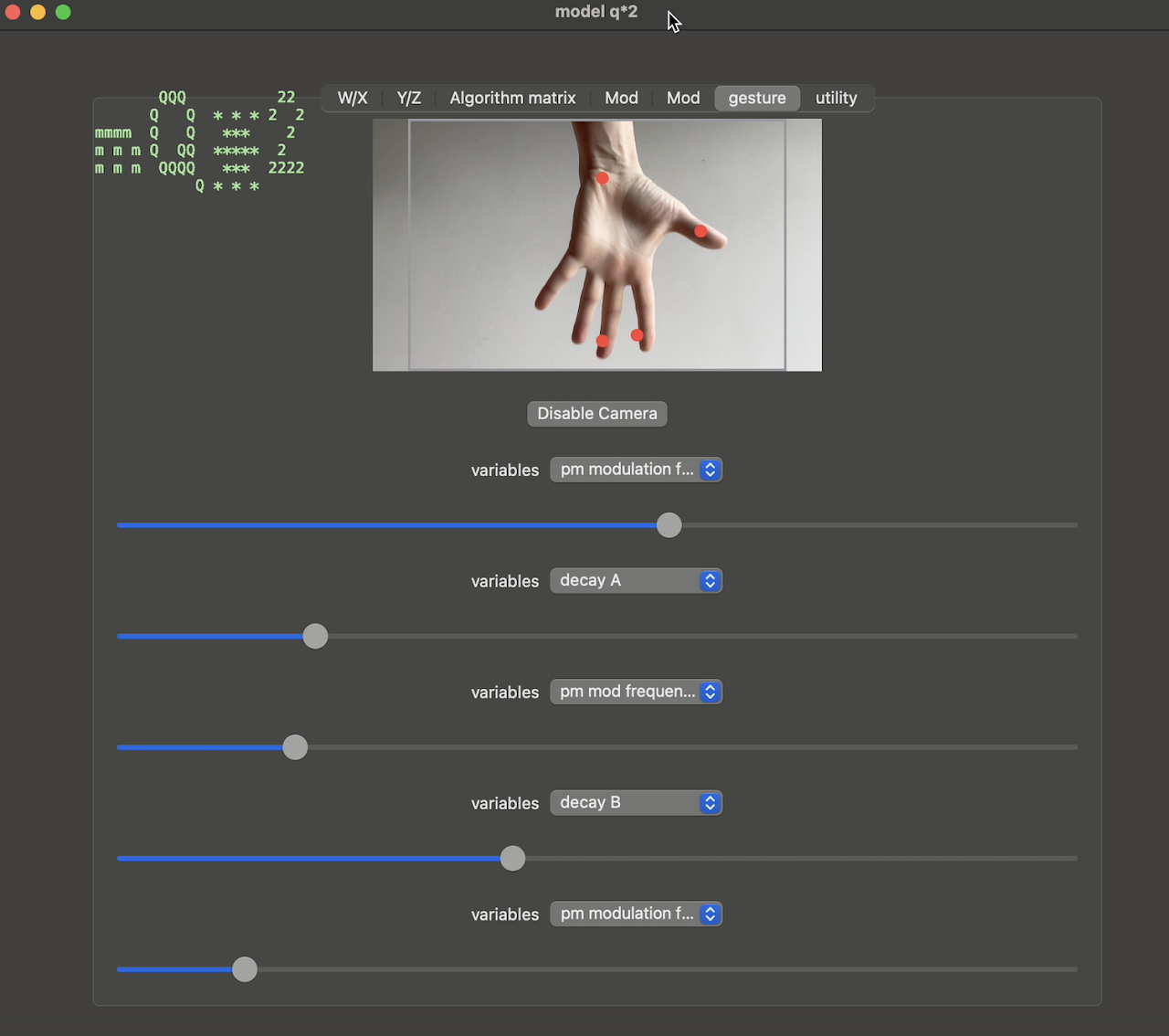

The ModelQ2 app is designed to control all parameters of the hardware but also facilitates gesture control. Allowing variables to be assigned to the base of the palm, the thumb, the index finger and the middle finger.
The tracking inbuilt to follow these targets is precise and can be the basis for interesting integration with ModelQ2 hardware.

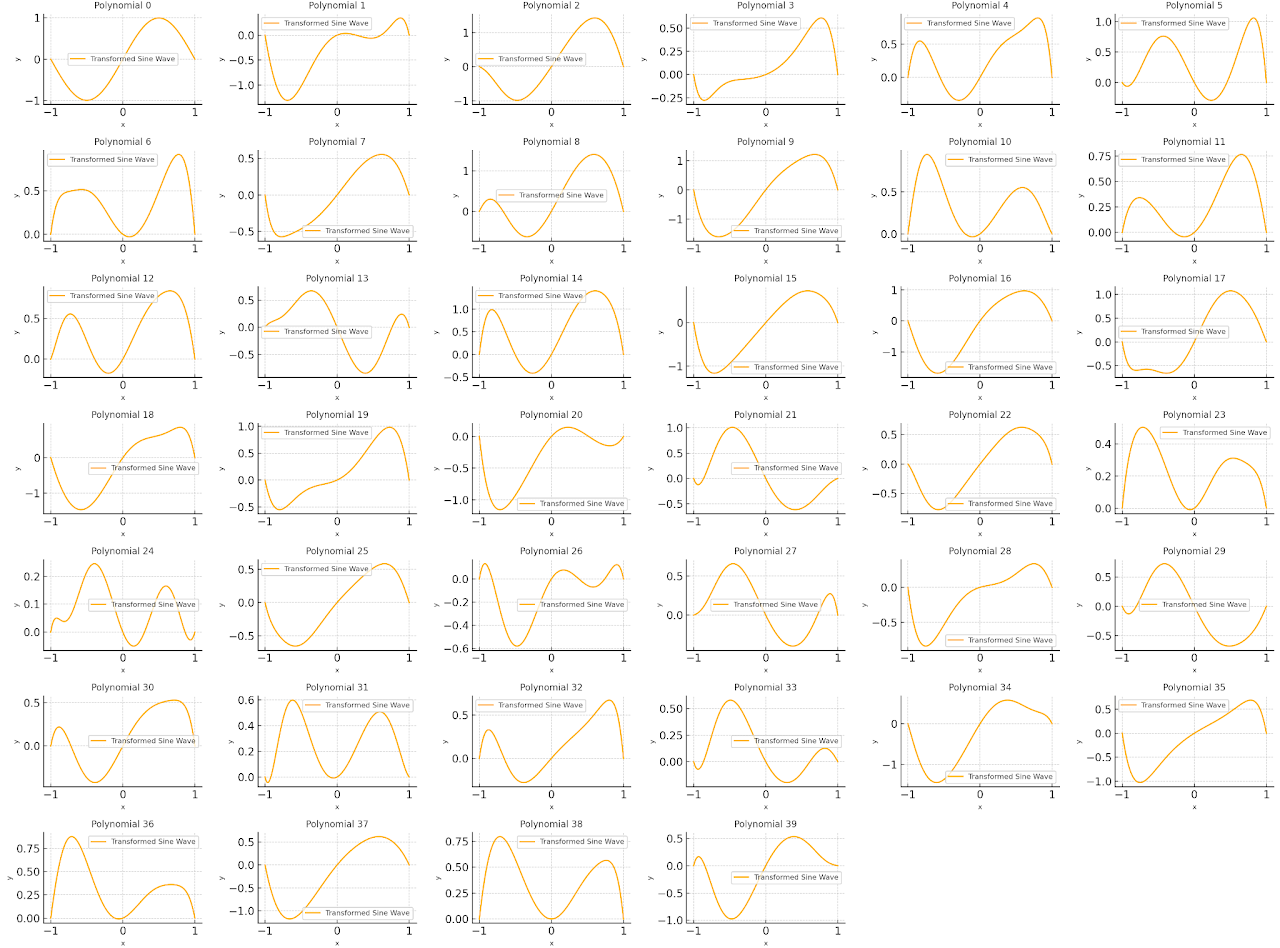

Post output from the DSP matrix modelQ2 has stereo waveshapers that utilise chebyshev polynomials of the 2nd kind. 40 predefined polynomials each with 10 harmonics.
These polynomials can be smoothly interpolated and scanned with each other and provide a unique harmonic contribution to the phase modulation cores.
